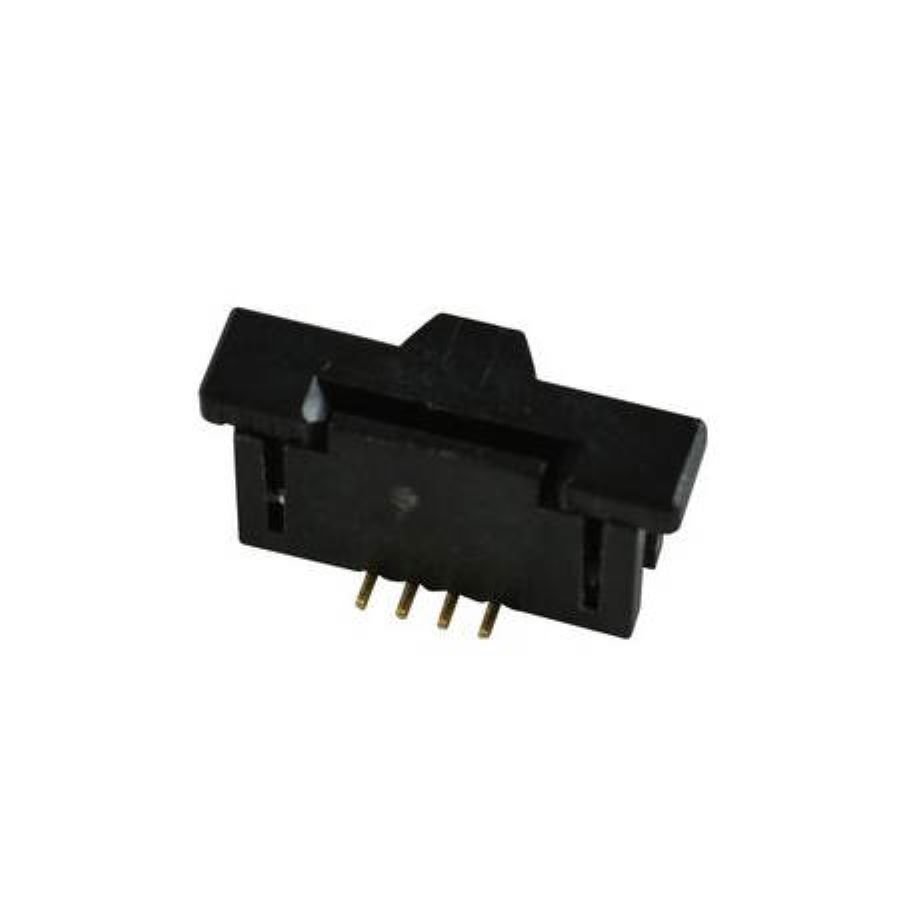

1734248-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1734248-4
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:4 1 A 125 V
| Parameter | Value |
|---|---|
| Length | 11.4046 mm |
| Width | 4.6 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Height | 7.7 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 4.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94V-0 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Wire/Cable Type | Flat Flex |
| Circuit Application | Signal |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| PCB Mount Retention | With |
| PCB Mount Alignment | Without |
| Mounting Angle | Vertical |
Stock: 5507
Distributors
pcbx
pcbxUnit Price$0.59417
Ext.Price$0.59417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59417 | $0.59417 |
| 10 | $0.50612 | $5.06120 |
| 25 | $0.46166 | $11.54150 |
| 50 | $0.44777 | $22.38850 |
| 100 | $0.43430 | $43.43000 |
| 300 | $0.41596 | $124.78800 |
| 500 | $0.39840 | $199.20000 |
| 1000 | $0.34112 | $341.12000 |
| 3000 | $0.33551 | $1006.53000 |
| 5000 | $0.33000 | $1650.00000 |
